    Exhaust Cleaning Vessel Marine Scrubber Tower

    Ask Lasest Price
    Brand Name : Puyier
    Model Number : PYDeSOx
    Certification : IAPP AIP
    Payment Terms : L/C, T/T
    Delivery Time : 120-180days
    Supply Ability : 20 sets/month
    • Product Details
    • Company Profile

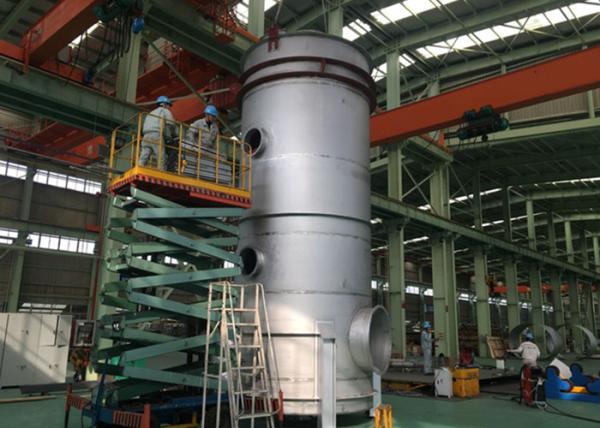

    Exhaust Cleaning Vessel Marine Scrubber Tower

    Vessel Scrubber Tower


    Specification

    parameters of U-Type scrubber
    Output power (MW)41220304455
    Back pressure (Pa)Less than 1200
    Outside Diameter (m)2.13.64.65.66.87.6
    Height (m)7.28.61111.913.214.4
    Width (m)5.26.689.310.812
    Dry weight (ton)81623303844
    Operation weight (ton)102030425565
    System power comsuption(KW) (open)90196300395620780
    System power comsuption(KW) (close)82146208265400496

    Desulfurization Comparision



    Process


    Advantages


    Disadvantages


    Summary

    Sea water (for open loop)

    1: Reliable technology and simple process for operation

    2: Easily available sea water

    3: Less equipment invest cost

    4: No consumption of fresh water

    1: Larger scrubber required

    2: Extra CO2 discharge

    3: Not suitable for exhaut gas with high SOx

    4: Large occupying space and low desulfurization efficiency in low salty sea water

    5:Depending on the sea water alkalinity

    6: Produced more effluent

    1: Simple structure and cheap cost

    2: Applicable to the sea where discharge effluent can be allowed

    Fresh water +NaOH (close loop or Hybrid)

    Hybrid- can be realized by one touch control beteen open loop and close loop

    1: Not relying on the condition of sea water

    2: High desulfurization efficiency

    3: Less CO2


    1: Consuming fresh water

    2: Requiring dosing system

    3: Requiring cooling system

    4: NaOH is required to be stored safely

    1:High equipment cost

    2: Better stability

    Sea water + Mg(OH)2

    (close loop or Hybrid)

    Hybrid- can be realized by one touch control beteen open loop and close loop


    1: Not relying on the condition of sea water

    2: Better desulfurization efficiency than sea water

    3: Less alkaline required

    4: Can be easily and safely stored and transforted

    1: Requiring dosing system

    2: Requiring cooling system


    1: High equipment cost

    2: Better stability

    3: Harmless to the body


    Product details
